| Brand Name: | AIKE POWER |
| Model Number: | AP500 |
| MOQ: | 1 |
| Price: | negotiate |
| Supply Ability: | 1000 set/m |

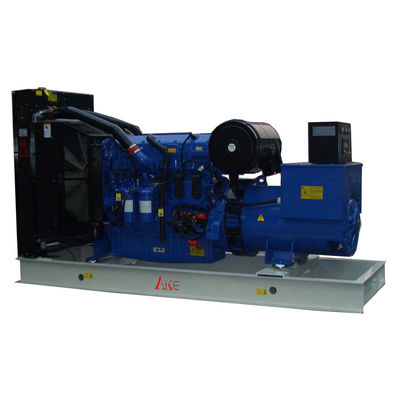

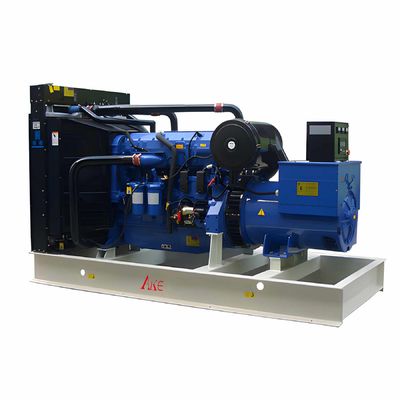

455kVA Perkins diesel generator set , Perkins diesel power generator set , Perkins generator set
Perkins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.
Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option
There are Perkins from China,UK,USA and india,all depend on the required model.
ATS can be option
Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China
Generator Standard Compose:
| Model | Standby Power | Prime Power | Engine Model | Bore×Stroke | Fuel consumption | Weight | Dimensions | ||
| (LxWxH) | |||||||||
| kVA | kW | kVA | kW | (mm) | (L/h) | (Kg) | (mm) | ||
| AP10 | 10 | 8 | 8 | 7 | 403A-11G1 | 77×81 | 3 | 359 | 1430x552x1150 |
| AP14 | 14 | 11 | 13 | 10 | 403A-15G1 | 84×90 | 3.7 | 362 | 1430x552x1150 |
| AP22 | 22 | 18 | 20 | 16 | 404A-22G1 | 80×100 | 5.3 | 467 | 1580x552x1150 |
| AP33 | 33 | 26 | 30 | 24 | 1103A-33G | 105×127 | 7.1 | 667 | 1580x720x1165 |
| AP50 | 50 | 40 | 45 | 36 | 1103A-33TG1 | 105×127 | 10.7 | 730 | 1600x720x1180 |
| AP66 | 66 | 53 | 60 | 48 | 1103A-33TG2 | 105×127 | 13.9 | 780 | 1600x720x1180 |
| AP72 | 72 | 58 | 65 | 52 | 1104A-AATG1 | 105×127 | 14.8 | 800 | 1760x720x1180 |
| AP88 | 88 | 71 | 80 | 64 | 1104A-44TG2 | 105×127 | 18.7 | 816 | 1760x720x1180 |
| AP113 | 113 | 90 | 100 | 80 | 1104C-44TAG2 | 100×127 | 20.6 | 1100 | 2240x850x1380 |
| AP150 | 150 | 120 | 135 | 108 | 1106-70TG1 | 100×127 | 31.5 | 1250 | 2240x850x1380 |
| AP165 | 165 | 132 | 150 | 120 | 1106-70TG2 | 100×127 | 41 | 1300 | 2240x850x1380 |
| AP200 | 200 | 158 | 180 | 144 | 1106A-70TG3 | 105×127 | 40.2 | 1360 | 2345x850x1400 |
| AP225 | 225 | 183 | 200 | 160 | 1106A-70TAG4 | 117×136 | 45 | 2170 | 2430x960x1590 |
| AP275 | 275 | 220 | 250 | 200 | 1506A-E88TAG2 | 117×136 | 48 | 2170 | 2430x960x1590 |
| AP300 | 300 | 240 | 275 | 220 | 1506A-E88TAG3 | 117×136 | 45 | 2170 | 2430x960x1590 |
| AP330 | 330 | 264 | 300 | 240 | 1506A-E88TAG4 | 117×146 | 56 | 2200 | 3000x1100x1700 |
| AP400 | 400 | 320 | 350 | 280 | 1506A-E88TAG5 | 117×146 | 60 | 2200 | 3000x1100x1700 |
| AP450 | 450 | 360 | 400 | 320 | 2206C-E13TAG2 | 130×157 | 71 | 3300 | 3100x1120x1800 |
| AP500 | 500 | 400 | 455 | 364 | 2206C-E13TAG3 | 130×157 | 81 | 3400 | 3100x1120x1800 |
| AP550 | 550 | 440 | 500 | 400 | 2506C-E15TAG1 | 137×171 | 95 | 3800 | 3300x1150x2050 |
| AP660 | 660 | 528 | 600 | 480 | 2506C-E13TAG2 | 137×171 | 100 | 3950 | 3300x1150x2050 |
| AP700 | 700 | 560 | 625 | 500 | 2806A-E18TAG1A | 145×183 | 123 | 4710 | 3500x1150x2190 |
| AP800 | 800 | 640 | 725 | 580 | 2806A-E18TAG2 | 145×183 | 132 | 4710 | 3500x1150x2190 |
| AP900 | 900 | 720 | 800 | 640 | 4006-23TAG2A | 160×190 | 157 | 5020 | 4200x1470x2200 |
| AP1000 | 1000 | 800 | 900 | 720 | 2006-23TAG3A | 160×190 | 172 | 5220 | 4400x1470x2200 |
| AP1100 | 1100 | 880 | 1000 | 800 | 4008-TAG1A | 160×190 | 195 | 7320 | 4800x2050x2450 |
| AP1375 | 1375 | 1100 | 1250 | 1000 | 4008-TAG2A | 160×190 | 226 | 7611 | 4800x2050x2450 |
| AP1500 | 1500 | 1200 | 1350 | 1080 | 4012-46TWG2A | 160×190 | 259 | 9154 | 5000x2120x2760 |
| AP1500 | 1500 | 1200 | 1350 | 1080 | 4012-46TAG1A | 160×190 | 283 | 11200 | 5000x2120x2760 |
| AP1650 | 1650 | 1320 | 1500 | 1200 | 4012-46TWG3A | 160×190 | 283 | 11200 | 5000x2120x2760 |
| AP1875 | 1875 | 1500 | 1710 | 1368 | 4012-46TAG2A | 160×190 | 301 | 12000 | 5200x2240x2870 |
| AP2000 | 2000 | 1600 | 1850 | 1480 | 4016-46TAG3A | 160×190 | 370 | 13200 | 5600x2240x2870 |
| AP2000 | 2000 | 1600 | 1850 | 1480 | 4016-TAG1A | 160×190 | 424 | 15430 | 5930x2300x3010 |
| AP2250 | 2250 | 1800 | 2000 | 1600 | 4016-61TRG1 | 160×190 | 424 | 15430 | 5930x2300x3010 |
| AP2255 | 2255 | 1800 | 2000 | 1600 | 4016-TAG2A | 160×190 | 434 | 15430 | 5930x2300x3010 |
| AP2500 | 2500 | 2000 | 2250 | 1800 | 4016-61TRG2 | 160×190 | 483 | 15960 | 6400x2300x3010 |
| AP2750 | 2750 | 2200 | 2500 | 2000 | 4016-61TRG3 | 160×190 | 528 | 15960 | 6500x2300x3010 |
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
